Lifting Equipment: An Introduction

At Vacuum & Crane, we provide high quality lifting equipment and material handling equipment, including Mini cranes, glass & cladding Vacuum Lifters, forklift attachments and hoists. Based in the West Midlands, we supply our equipment Nationwide. With over 20 years of experience in the industry, we have worked extremely hard to develop our services to the high standard they are today.

We have a wide range of glass boy floor cranes, forklift attachments and lifting beams for immediate hire. We also have a fantastic development team to create bespoke solutions for you. Just give us a call with your requirements and we will provide you with a solution.

Does your machine need a test?

We also offer a Loler testing and certification service for your machines if they are out of test or need repairing. All our lifting equipment adheres to regulations and they are regularly checked to ensure they are meeting our exacting standards

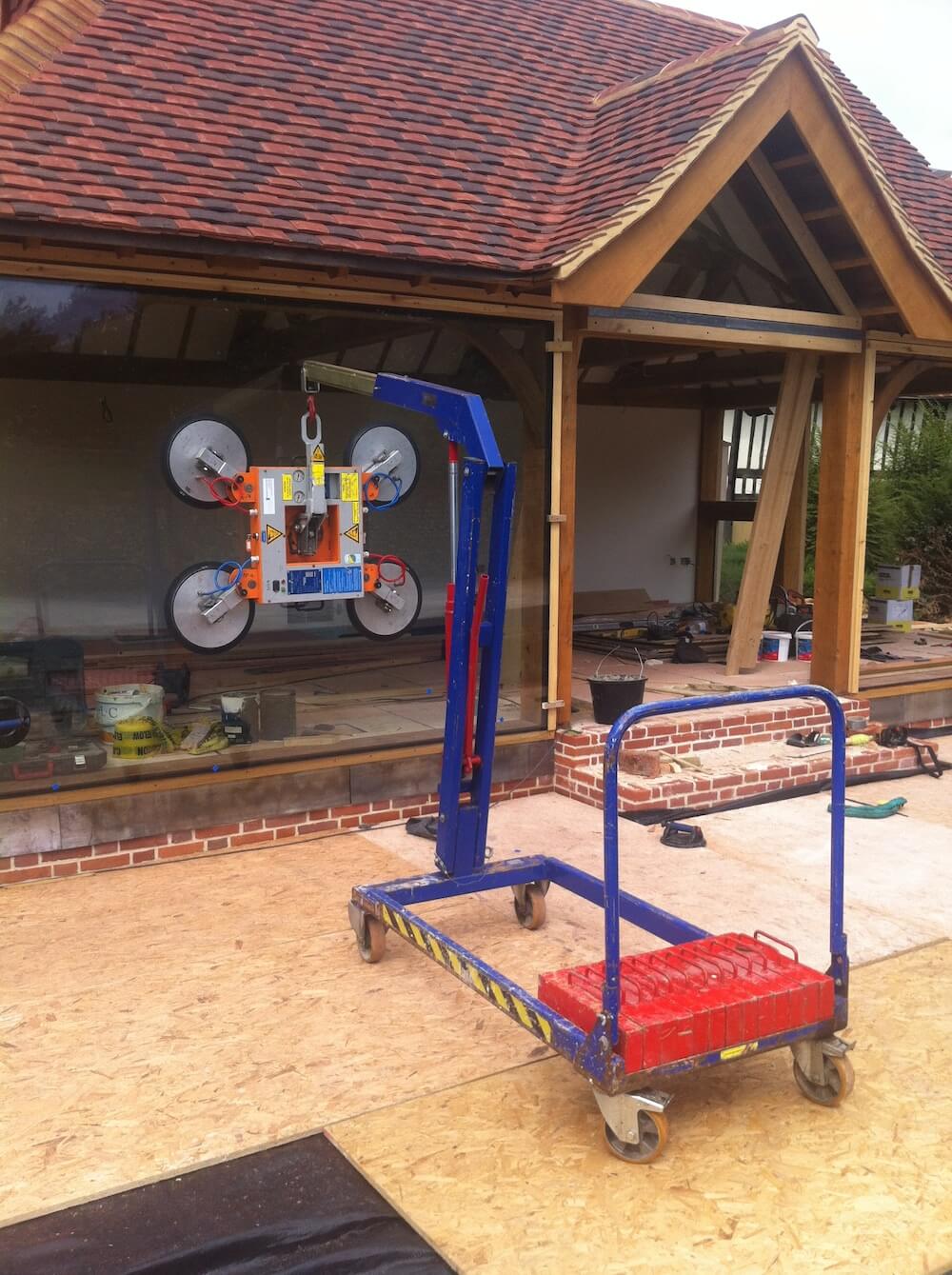

Glass Boy Floor Crane 330 – 330kg

The Glassboy 330 is a counterbalanced floor crane and is ideal for shop fronts and low level glazing applications. Its compact design makes it easy to transport in a van.

When combined with a vacuum glass lifter it makes a simple solution for more basic glazing installations. It can also be used to install glass between floors or where there is an overhang.

A counterbalanced floor crane with a hydraulic lifting arm, the Glassboy is compact, lightweight and comes with a lift capacity of 330kg.

Features
  • Counterbalance floor crane with hydraulic lifting arm
  • Max lifting capacity of 330kg
  • Max hook height 2.76m
  • Perfect for office, showroom and shop front glazing, fitting below architectural features when used in conjunction with a vacuum lifter
  • Ideal for lifting loads from below when fitted with an electric hoist
  • Can be quickly and easily assembled and disassembled for transport
  • Lockable wheels
Technical Sheet

DOWNLOAD PDF HERE

Application: Ideal for glass installation

Model: Glassboy 330

Max hook height: 2.7m

Max SWL: 330kg

Weight: 122kg (w/o counterweights)

Weight Cont: 408kg (inc counterweights)

Height Stowed: 0.8m

Length stowed: 1.7m

Width stowed: 0.80m

Counterweights: 8 x 16kg

Hydraulic arm

Lockable rear wheels

Vacuum lifters hired separately

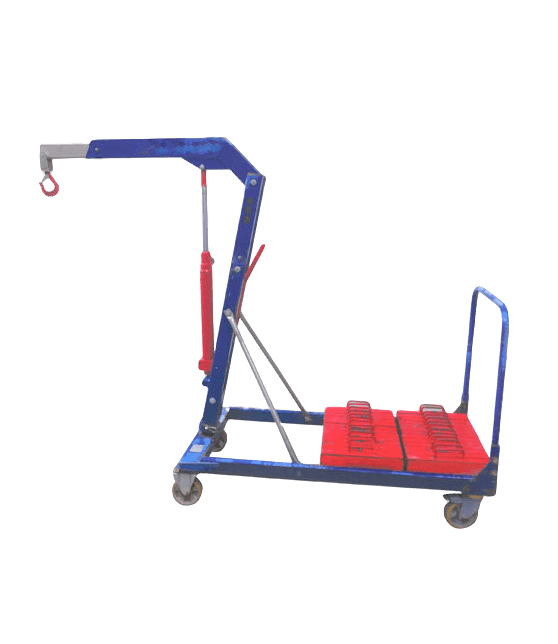

Glass Boy Floor Crane 500 – 500kg

With a lifting capacity of up to 500kg and a maximum hook height of 2.7m, the Glassboy 500 is a versatile and lightweight lifting machine that can be used between floors for raising loads from the ground with its optional electric hoist.

The Glassboy 500 can assist with a wide range of lifting applications. It is ideal for shop-front glazing and fitting below overhangs when used in conjunction with below-the-hook devices such as one of our Vacuum lifters.



Features
  • Capacity: 500KG
  • Maximum hook height of 2.7m
  • Hydraulic lifting arm
  • Lockable rear wheels
  • Effortlessly assembles and disassembles for easy transport
  • Optional electric hoist for raising loads from the ground up
  • Weight: 706kg (with counterweights)
Technical Sheet

DOWNLOAD PDF HERE

Application: Ideal for glass installation

Model: Glassboy 500

Max hook height: 2.7m

Max SWL: 500kg

Weight: 134kg (w/o counterweights)

Weight Cont: 706kg (inc counterweights)

Height Stowed: 0.8m

Length stowed: 1.7m

Width stowed: 0.80m

Counterweights: 26 x 22kg

Hydraulic arm

Lockable rear wheels

Vacuum lifters hired separately

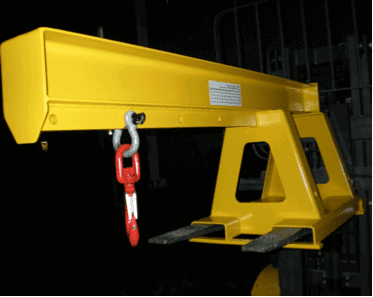

Fork Mounted Jib

A fixed length forklift jib which mounts on to the forks of any fork truck. This gives the user a hook point to mount other things from. It turns your fork truck into a crane in seconds, simply drive in and secure to forks. An excellent and essential standby for handling the occasional long/awkward load. Supplied with safety swivel, hook and shackle.

A fork mounted jib or hook is typically used when it is required to lift the load from the top rather than lifting from below the load, for example where the fork times cannot fit under the load. There are a wide range of jibs and hooks available from low profile to high profile which are useful if you need to lift that little bit higher.



Technical Sheet

DOWNLOAD PDF HERE

Weight: Fork Jib Weight – 165KG

Proof Load: Proof Load applied at 1000mm – 2100KG (150%)

Safe Working Load: Safe working load at 1000mm – 1400KG

Construction: Steel construction

Maximum Fork Size: Suitable for maximum fork size – 150mm x 50mm

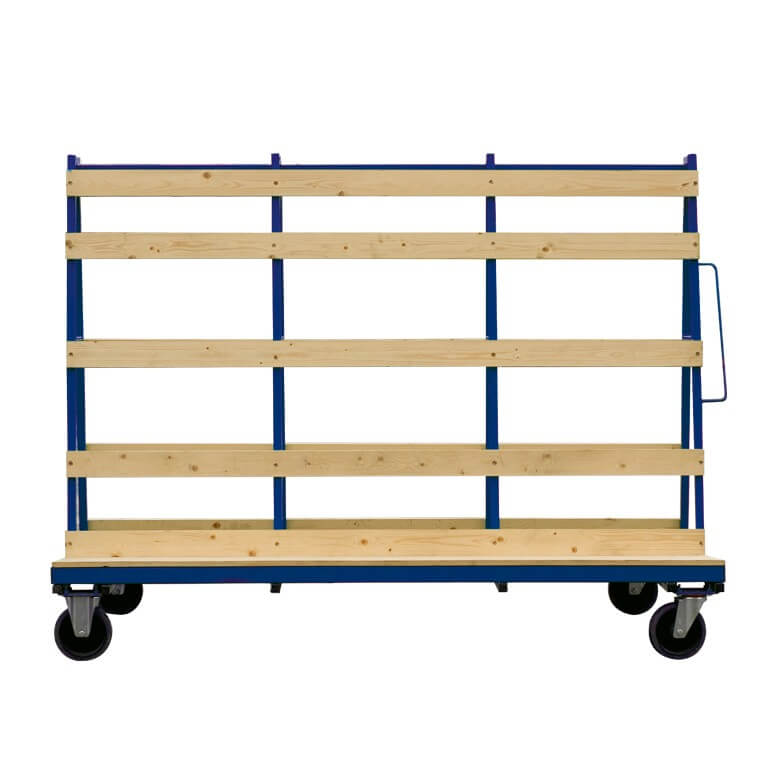

Large A-Frame Glass Trolley

Transport glass and other materials safely around a site or workshop with our specialist range of trolleys. This Large A-Frame is capable of transporting loads of up to 1 tonne yet has heavy-duty compound wheels making it easy to manoeuvre.

  • Swivel casters including locking brakes
  • Capacity – 1000kg
  • Wooden lined to protect material and prevent material from slipping
  • Dimensions – L2000 x W1410 x H2000mm
  • Easy movement via steering castor



Features
  • Swivel casters including locking brakes
  • Capacity – 1000kg
  • Wooden lined to protect material and prevent material from slipping
  • Dimensions – L2000 x W1410 x H2000mm
  • Easy movement via steering castor

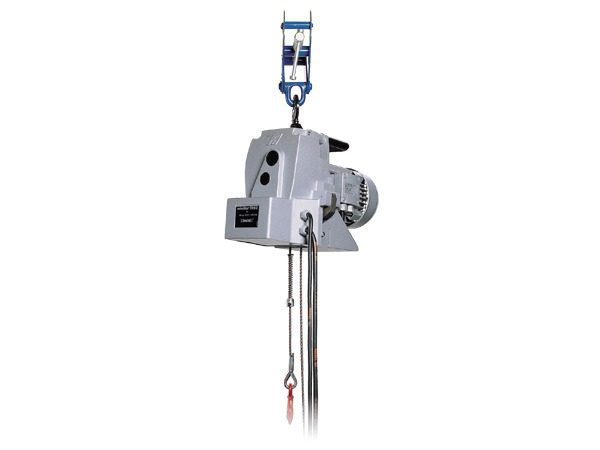

TR50-Minifor-Hoist-500KG

Minifor TR50 Hoist

0.5t Portable motorised wire rope hoist

Hoists are often used in conjunction with glass vacuum lifters and used for applications such as ground level shop front glass installation. Faster than the TR30 and with a 500kg capacity, the TR50 hoist also boasts a 2.5m pendant control cable with emergency stop function.

We provide competitive rates on both short and long term hire on our material hoists.

DOWNLOAD PDF DATA SHEET

Features

DOWNLOAD PDF DATA SHEET

  • 2.5m remote cable as standard
  • Long wire rope length
  • Easy to use, lightweight and powerful
  • Emergency stop function
  • Quick installation
